KA2902D Datasheet
Product Details
QUAD OPERATIONAL AMPLIFIERS
The KA224 series consists of four independent, high gain,internallyfrequency compensated operational amplifiers which were designedspecifically to operate from a single power supply over a wide voltagerange.Operation from split power supplies is also possible so long as thedifference between the two supplies is 3 volts to 32 volts.
Application areas include transducer amplifier, DC gain blocks and allthe conventional OP amp circuits which now can be easily implementedin single power supply systems.
FEATURES
Internally frequency compensated for unity gainLarge DC voltage gain: 100dBWide power supply range: KA224/A, KA324/A: 3V 32V (o 1.5 ~15V)KA2902: 3V~26V(or 1.5V ~ 13V)Input common-mode voltage range includes ground Large output voltage swing: 0V DC to Vcc-1.5V DCPower drain suitable for battery operation.
Specifications
| Attribute | Attribute Value |
| Manufacturer | Fairchild Semiconductor |
| Product Category | Instrumentation Amplifier |
| Categories | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | ON Semiconductor |
| Series | - |
| Packaging | Tube |
| Part-Status | Obsolete |
| Amplifier-Type | General Purpose |
| Number-of-Circuits | 4 Circuits |
| Output-Type | - |
| Slew-Rate | - |
| Current-Input-Bias | 40nA |
| Voltage-Input-Offset | 1.5mV |
| Current-Supply | 1mA |
| Current-Output-Channel | 40mA |
| Voltage-Supply-Single-Dual-± | 3 V ~ 26 V, ±1.5 V ~ 13 V |
| Operating-Temperature | -40°C ~ 85°C |
| Mounting-Type | Surface Mount |
| Package-Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier-Device-Package | 14-SOP |
| Base-Part-Number | KA2902 |
| |
Descriptions
General Purpose Amplifier 4 Circuit 14-SOP
Who we are?
is a professional electronic marketing corporation entirely engaged in the fields of semi-conductors and electronic components sale and service for clients over 10 years, specialize in selling the new and unused, original factory sealed packing electronic components. specialize in IC,diode,transistor,IGBT,DC-DC converter.....***has set up our own sales service conception and has already established strong partnerships with many famous manufacturers and we have more than 5,000,000 kinds of electronic components for your choices, always at your services !
FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer OF Integrated Circuit Chip . We can do OEM/ODM business.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: How to buy your products?
A: You can buy the products from our company directly.Normally the procedure is sign the contract, payment by T/T,Contact the shipping company to delivery the goods to your country.
Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
|
|

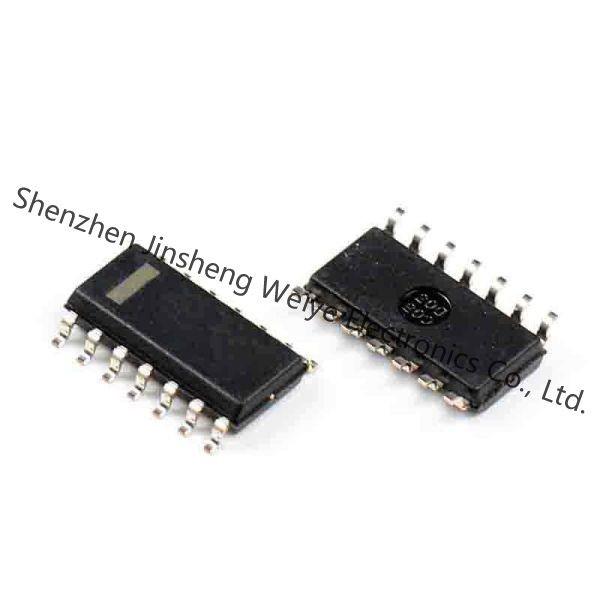

KA2902D Operational Amplifiers - Op Amps QUAD OP AMP Images
|
